Introduction: Why are titanium lug nuts so important?
Titanium Lug Nuts are seemingly small but vital components of a car’s chassis system. They are directly responsible for securing the wheels tightly to the hub axle heads and bear the full dynamic load of the vehicle in motion – including acceleration, braking, shearing forces during cornering, and the impact of bumpy roads.
Once these fasteners fail due to material defects, improper installation or mismatch of specifications, will lead to wheel loosening, abnormal noise, or even will lead to wheel fall off or even serious accidents.
According to the National Highway Traffic Safety Administration (NHTSA), about 2% of traffic accidents recorded each year are related to wheel fastening system failures. Therefore, the selection and maintenance of wheel fasteners is not a “small matter”, but the core link of the life safety of drivers.
Are Titanium Lug Nuts Worth It?
With the upgrading of the automotive industry’s demand for lightweight and high performance, titanium lug nuts have gradually penetrated from the racing field to the high-end modification market. Compared with traditional steel, titanium alloys such as Ti-6Al-4V offer significant advantages:
Weight reduction of 40%-50%
The weight of a single titanium lug nut is about 15-25 grams, while the steel nut is 30-50 grams, and the weight of the whole car can be reduced by about 1-2 kg, effectively reducing the sprung mass and improving the suspension response speed.
Strength and corrosion resistance
The tensile strength of titanium alloy can reach more than 900MPa, and the salt spray corrosion resistance is 10 times that of steel, especially suitable for wet or rainy areas.
High temperature stability
In continuous high-speed or track driving, titanium alloy can withstand high temperatures above 200 °C without deformation, to avoid the decline of preload caused by thermal expansion.
However, the high cost of titanium alloys (about 5-8 times that of steel) has also left many consumers wondering: Are titanium lug nuts worth it? The answer depends on the use scenario – for track cars, super-cars or high-end modified cars that pursue extreme performance, titanium alloys have significant advantages in lightweight and durability; But for daily commuter vehicles, steel or aluminum may be more cost-effective.
The key to compatibility issues: thread, cone and vehicle matching
Even with the choice of high-performance materials, the compatibility of lug nuts is still the core of determining their safe use. The following three parameters must match the original specifications of the vehicle:
Titanium Lug Nuts Thread Diameter
Common specifications include：M12×1.5 、 M12×1.25 、M14×1.5、1/2-20”
Titanium Lug Nuts Thread Pitch
That is, the distance between adjacent threads, which needs to be precisely matched to the thread groove of the hub shaft head. Wrong pitch will cause “false tightening” – manual tightening, quickly loose under dynamic load.
Fine pitch (1.25mm) : Precision bite for high-performance vehicles
Coarse pitch (1.5mm) : durable, suitable for SUVs/pickups
Titanium Lug Nuts Seat Type
Tapered/Conical Seat
Specification: Tapered or conical seat lug nuts feature a taper at the seating area. This taper is most commonly at a 60-degree angle, although some applications use a 45-degree or 90-degree angle. The angle indicates the degree of separation between the two walls of the lug nut and the wheel lug seat. Suitable for most Japanese, American cars (such as Toyota, Ford).
Radius/Ball Seat
Specifications: Radius or ball seat lug nuts feature a rounded seating area. This rounded area can be at a radius of r12, r13, or r14. Radius or ball seat lug nuts are most commonly used for Acura and Honda applications.
Flat/Shank Seat
Specifications: Flat or shank seat lug nuts feature a flat seating area. These nuts also feature a shank extension under the head which is used to center the wheel and provide extra thread engagement. Mostly for heavy vehicles or special modifications.

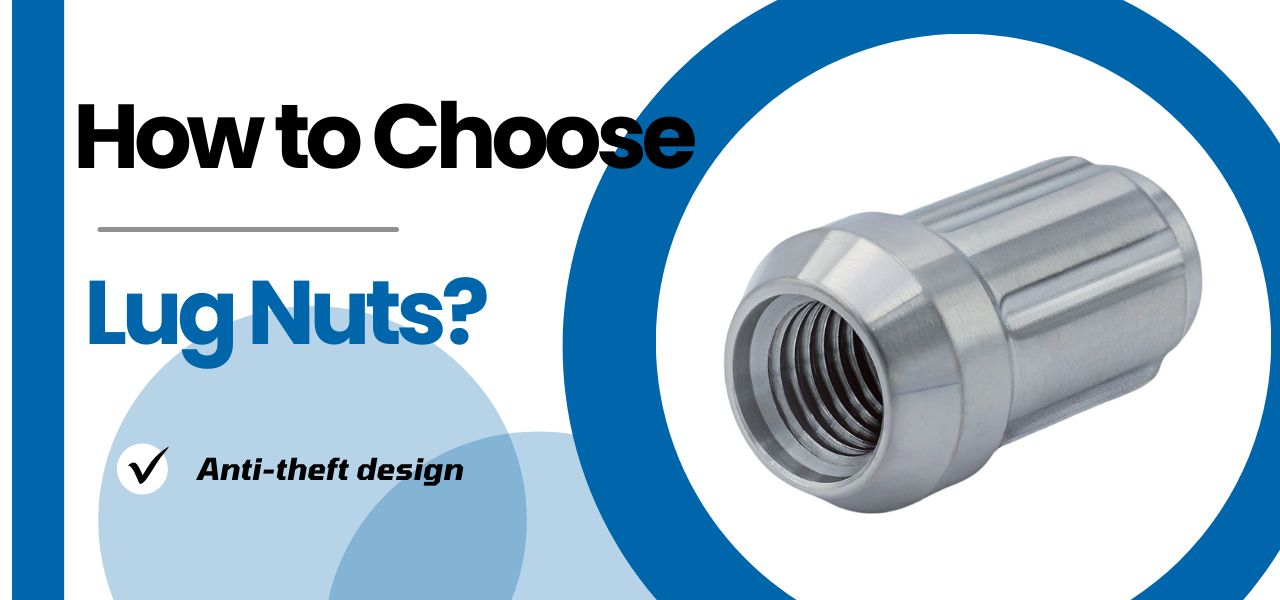

How to Choose Lug Nuts?
Confirm vehicle matching
Consult the manual or manufacturer’s data to avoid hub shedding due to cone/thread errors.
Brand products are preferred
Recommended brands: Muteki, Project Kics, ARP .Or choose from a direct titanium lug nuts manufacturer.
Inspection and certification standards
Compliance with JIS, DIN or SAE strength certification (e.g. SAE J429 Grade 5) is required.
Anti-theft design
Choose an anti-theft nut with a locking sleeve or a special-shaped Drive (such as Spline Drive).
Installation tool specification
Use a torque wrench (recommended value: 80-120 N·m), do not tighten the wind cannon violently.
Conclusion: Are titanium lug nuts worth it?
For the crowd: Players seeking extreme lightweight, track performance or personalized modification.
Caution Scenario: If the budget of the daily commuter car is limited, it is recommended to choose chrome-plated steel nuts.
Ultimate advice: Give priority to matching specifications, then consider the material, safety is always the first principle.
Need titanium lug nuts manufacturer, contact us custom titanium lug nuts.
Share your setup or ask questions in the comments.
