In the fields of industrial manufacturing, heavy machinery and new energy, a tiny bolt may determine the success or failure of the entire system. Among the various bolt grades, GR5 bolts, with their “Iron Man” -like comprehensive performance, have become the ultimate weapon for engineers to deal with extreme challenges. This article will take you on a deep dive into the hardcore capabilities of this “industrial superhero”.

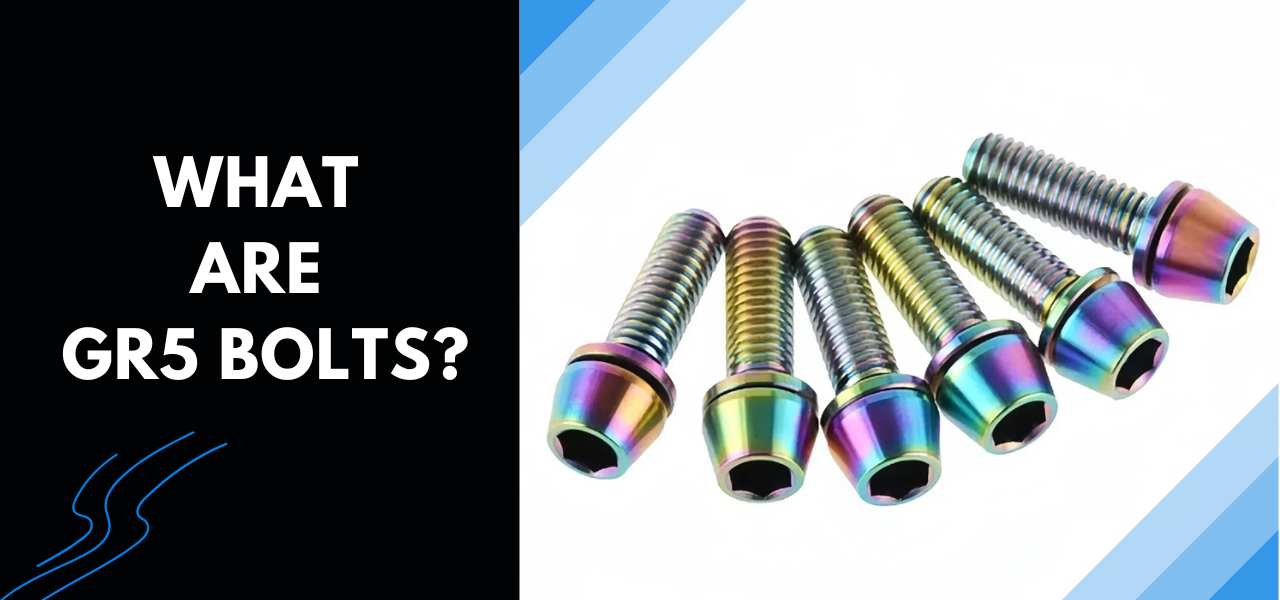

What Are GR5 Bolts?
GR5 bolts are made of Grade 5 titanium alloy and are a type of high-strength fastener, specifically designed to withstand extreme mechanical pressure and harsh environments.
Grade 5 titanium alloy, also known as Ti-6Al-4V, is a high-strength titanium alloy composed of 6% aluminum, 4% vanadium and 90% titanium. It has excellent corrosion resistance and mechanical properties, and is widely used in aerospace, medical and chemical fields, etc. Due to its light weight and high strength, grade 5 titanium alloys are regarded as ideal materials in many industrial applications.

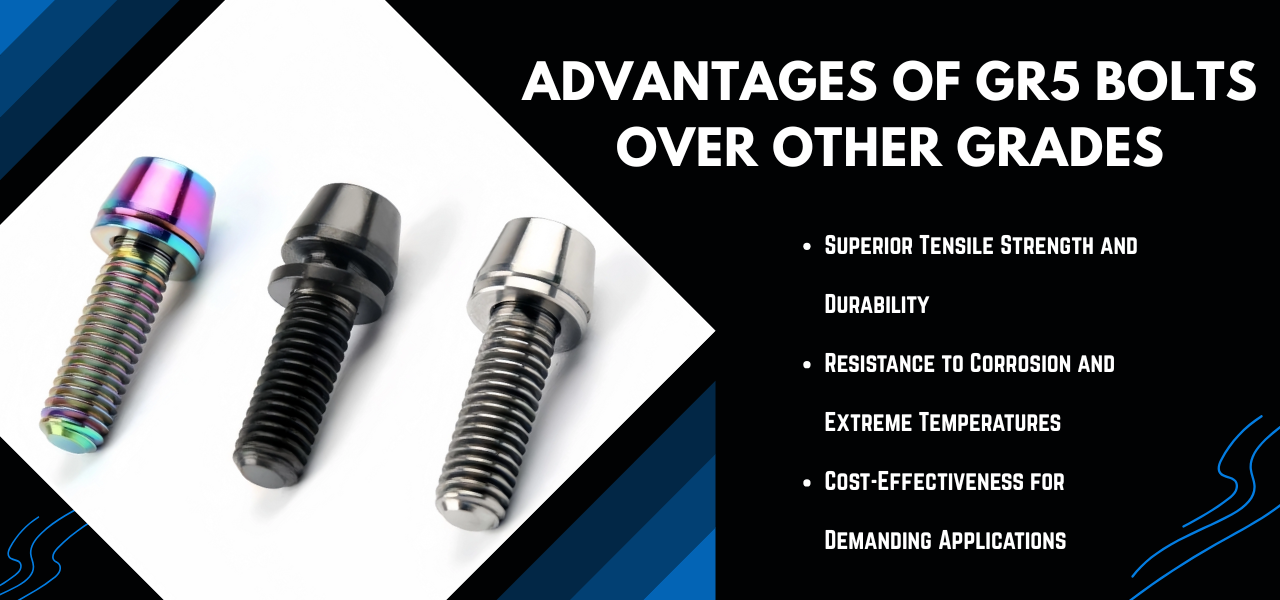

Advantages of GR5 Bolts Over Other Grades
In the field of industrial fasteners, the selection of bolt grades directly affects the performance and safety of equipment. As a representative of high-performance solutions, GR5 bolts have stood out in numerous application scenarios with their unique advantages.
Superior Tensile Strength and Durability
The core competitiveness of GR5 bolts is primarily reflected in their tensile strength. According to ASTM/SAE standards, the tensile strength reaches over 1200MPa, which is more than 1.5 times that of ordinary GR2 bolts (approximately 500-700 mpa). This high strength stems from its special material formula – based on titanium alloy (Ti-6Al-4V), with the addition of aluminum and vanadium elements, a stable α-β duplex structure is formed through heat treatment processes, thereby significantly enhancing hardness and anti-deformation ability.
In practical applications, this high strength means:
Higher load-bearing capacity: For instance, in the tower connection of wind turbines, GR5 bolts can withstand the periodic stress caused by extreme wind pressure, avoiding the risk of fracture due to metal fatigue.
Reduce the number of bolts: As individual bolts have higher strength, engineers can optimize the design and reduce the number of bolts in the same structure, thereby lowering the overall weight (this is particularly important in the aerospace field).
In addition, the durability stands out during long-term use. For instance, after a car suspension system uses Grade 5 bolts, it can still maintain a preload of over 90% even after undergoing a bumpy road test of more than 100,000 kilometers, while ordinary bolts may become loose due to plastic deformation.
Resistance to Corrosion and Extreme Temperatures
The second major advantage of GR5 bolts is their environmental tolerance. Through surface treatment techniques (such as anodizing or ceramic coating), it can work stably under the following harsh conditions:
Corrosive environment
In Marine engineering or chemical plants, the salt spray corrosion resistance of GR5 bolts is more than ten times that of ordinary carbon steel bolts. For instance, after a certain offshore oil platform used Grade 5 bolts, no rust problem occurred within five years, while traditional 304 stainless steel bolts only supported for two years under the same conditions.
Its titanium alloy base material can also resist the erosion of acid and alkali media, making it suitable for electroplating plants or sewage treatment equipment.
Extreme temperature range
In high-temperature scenarios, GR5 bolts can maintain their strength without decline at 300℃, while GR2 bolts will soften rapidly above 150℃. For instance, if the exhaust manifold bolts of internal combustion engines are of GR5 grade, creep failure caused by high temperatures can be avoided.
Low-temperature environment: In extremely cold regions of -50℃ (such as Arctic research stations), the impact toughness of GR5 bolts is still superior to that of most stainless steel materials, avoiding the risk of brittle fracture at low temperatures.
Cost-Effectiveness for Demanding Applications
Although the single purchase cost of GR5 bolts is higher than that of ordinary bolts, its cost advantage throughout the entire life cycle is significant:
Reduce downtime maintenance losses
In heavy mining machinery, replacing faulty bolts can lead to production losses of hundreds of thousands of yuan per day. The service life of GR5 bolts is usually more than three times that of GR2 bolts, significantly reducing the frequency of downtime. For instance, after a certain iron ore crusher switched to Grade 5 bolts, the annual maintenance cost was reduced by 42%.
The indirect benefits brought by lightweighting
The density of GR5 is only 60% of that of steel. In the aerospace field, using it to replace traditional steel bolts can reduce the weight of structures. According to statistics, for every 1 kilogram of weight reduction in commercial aircraft, approximately 3,000 US dollars in fuel costs can be saved annually.
Compatibility optimization design cost
The high strength of GR5 bolts enables engineers to adopt a more concise connection scheme. For instance, in a certain bridge project, Grade 5 bolts were used to replace the originally designed double-layer GR2 bolt array, saving 15% of the construction time and material costs.
Common Applications of GR5 Bolts
GR5 bolts, with their high strength, corrosion resistance and reliability, have become the “invisible guardians” in multiple industrial fields. Whether it’s speeding cars, soaring aircraft, century-old buildings, or even clean energy equipment, They are quietly undertaking crucial connection tasks.
Automotive and Aerospace Industries
In automotive manufacturing, GR5 bolts are commonly found in high-load parts such as engine blocks, suspension systems, and gearboxes. For instance, the cylinder head bolts of turbocharged engines need to withstand local temperatures up to 1000°C and severe vibrations. The high-temperature stability (operating temperature range -50°C to 300°C) and fatigue resistance of GR5 material can significantly reduce the risk of loosening. In the field of electric vehicles, its lightweight feature (about 40% lighter than ordinary steel bolts) can help reduce the weight of the vehicle body and increase the driving range.
The aerospace industry has a more stringent reliance on GR5 bolts: The fuselage structure of a commercial airliner may use over 2 million bolts, among which key connection points (such as the junctions between the wings and the fuselage, landing gear) must be of GR5 grade. Take the Boeing 787 as an example. Its titanium alloy Grade 5 bolts not only meet the FAA’s requirements for material strength (tensile strength ≥1000MPa), but also can withstand the low temperature of -60°C and ozone corrosion during high-altitude flights, ensuring a service life of more than 20 years.
Heavy Machinery and Construction Projects
In scenarios such as mining machinery and bridge construction, GR5 bolts serve as the “ultimate defense line” against extreme loads:
Excavator rotary platform:
The bolts connecting the upper frame and the rotary bearing need to withstand 360° rotational impact 15 times per minute. The hardness of GR5 (HRC 39-44) can prevent the loss of preload caused by thread deformation.
Suspension bridge steel cable anchoring system:
The cable clamps and bolts of the Hong Kong-Zhuhai-Macao Bridge are of GR5 grade, each capable of bearing a tensile force of 50 tons, and simultaneously resistant to seawater and salt spray corrosion, with a design life of up to 120 years.
In the seismic dampers of the Shanghai Tower, a super high-rise building steel structure, Grade 5 bolts fix 1,500 tons of damping mass blocks to the main structure. Its ductility (elongation at break ≥10%) can absorb energy through slight deformation during an earthquake, avoiding brittle fracture.
Renewable Energy Systems (Wind Turbines, Solar Farms)
The wind power generation field is a “testing ground” for GR5 bolts:
a 5MW wind turbine blade root bolt needs to withstand a centrifugal force at a wind speed of 25 meters per second (equivalent to a tensile force of 20 tons), while also dealing with temperature cycles ranging from -30°C to 80°C. Test data from Vestas in Denmark shows that after simulating 20 years of wind load, the preload loss of Grade 5 bolts is only one-third of that of ordinary bolts.
In solar power stations, the application of GR5 is equally crucial:
The inclination adjustment bolts of photovoltaic brackets need to undergo thousands of thermal expansion and contraction cycles every year. The low-carbon steel base material of GR5 + galvanized layer (thickness ≥8μm) can ensure no rust for 25 years.
The bolts of the mirror field tracking system in centralized solar thermal power plants are exposed to desert ultraviolet rays and sand dust for a long time. The surface hardness of GR5 (Vickers hardness ≥380HV) can effectively resist abrasive wear.

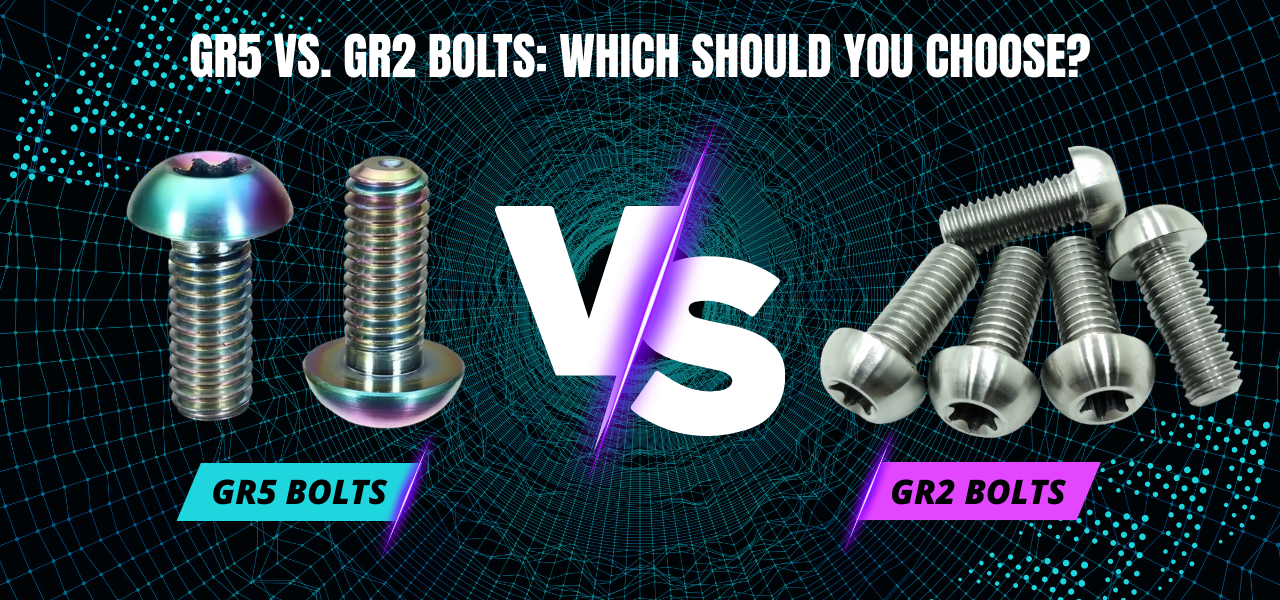

GR5 Bolts vs. GR2 Bolts: Which Should You Choose?
Strength Comparison (Yield Strength, Hardness)
Although GR5 and GR2 bolts are both made of titanium alloy (classified according to ASTM standards), their performance differences are significant. The yield strength of Grade 5 boltsis approximately 827 MPa, and the hardness reaches HRC 36-39, far exceeding the yield strength (about 275 MPa) and hardness (HRB 80-90) of GR2 bolts.
This gap stems from the optimization of the material formula: GR5 adds 6% aluminium and 4% vanadium (Ti-6Al-4V), while GR2 is pure titanium or low alloy titanium (such as Ti-0.2Pd). Therefore, GR5 can withstand higher loads and impact forces, making it suitable for critical structures. GR2 is used in low-strength scenarios (such as decorative parts or non-load-bearing connections).
Use Case Scenarios for Each Grade
Typical applications of GR5 bolts:
High-load environments: aerospace engine mounts, automotive suspension systems, heavy machinery joints.
Extreme temperature: Long-term exposure to an environment ranging from -50°C to 300°C (such as in chemical equipment or high-temperature pipelines).
High-risk areas for corrosion: offshore platforms and connections of wind turbine towers in salt spray environments.
The applicable scenarios of GR2 bolts:
Lightweight requirements: bicycle frames, fasteners for consumer electronic products (requiring weight reduction but not high strength).
Common corrosion-resistant scenarios: indoor pipes, food processing equipment (in contact with weak acids or cleaning agents).
Projects with limited budgets: Non-critical structures (such as shelf assembly, temporary supports).
Where to Buy High-Quality GR5 Bolts
Why Trust Us RFL Tech for Industrial Fasteners?
- 10+ Years of titanium fastener manufacturing experience in custom titanium bolts, screws, nuts, etc.
- 36 CNC precision machining machines ensure production capacity, efficiency, and machining accuracy.
- 8 times of QC checks from raw materials to processing and shipping, ensuring superior product quality.
- 500+ customized titanium fastener solutions for clients from Europe, USA, Japan, and other countries.
- ISO 9001 Certified, ensuring our processes and products consistently meet the highest levels of quality and reliability.
Conclusion
In industrial scenarios that pursue high strength, durability and cost-effectiveness, GR5 bolts have become the “hidden champions” in many industries due to their unique material properties and wide applicability.
If you are looking for a “zero-error” connection solution for a key project, click here to view RFL Tech’s GR5 bolt, or contact us to obtain free samples and solution optimization suggestions.
