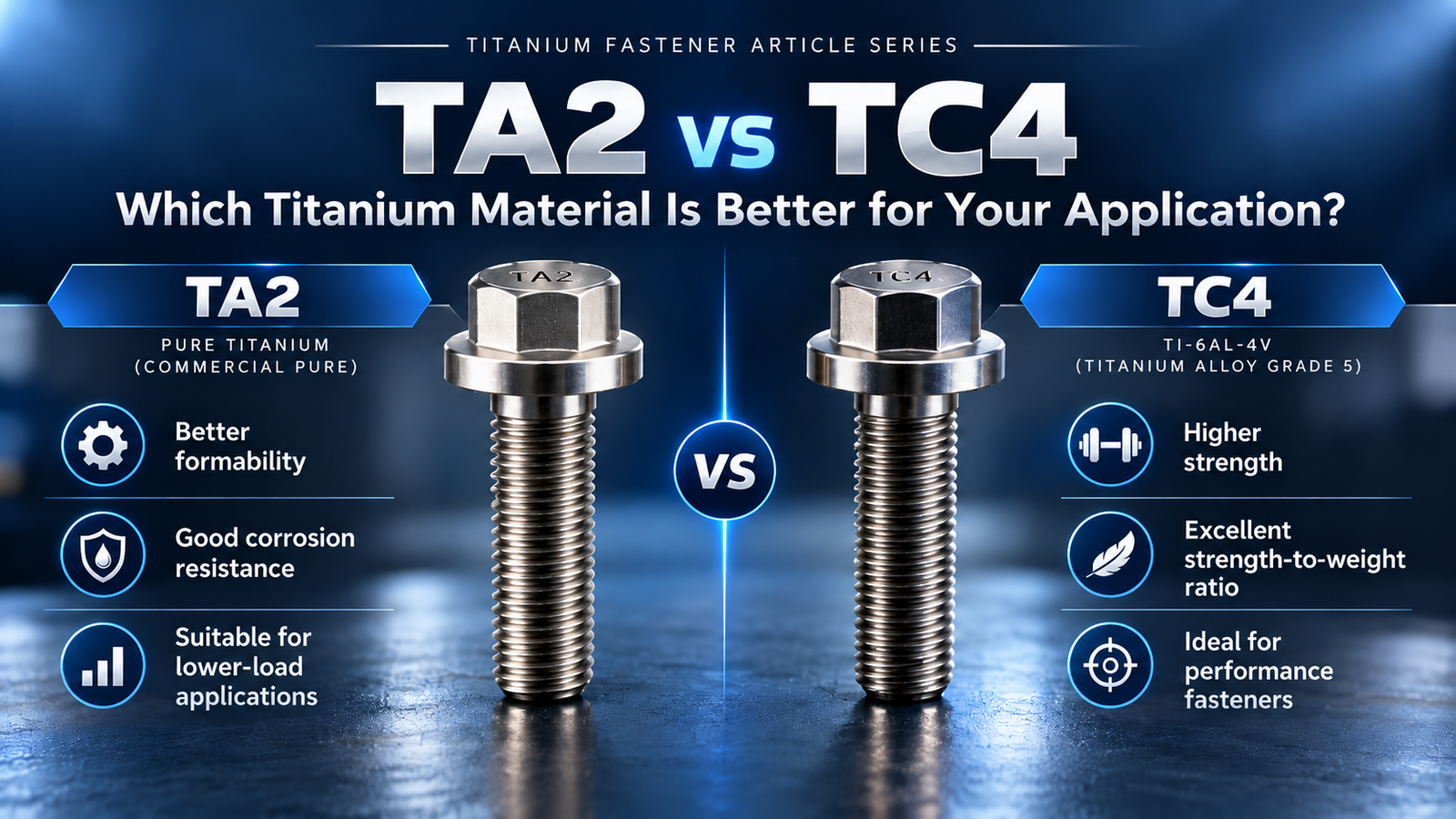

Which is better for your project—TA2 or TC4? When buyers ask, “are titanium bolts strong enough for demanding applications?” the answer depends on the grade, design, and operating conditions. Both materials are used in titanium bolts, but TA2 is valued for formability and corrosion resistance, while TC4 offers higher strength. Choosing the right grade helps balance performance and manufacturing cost.

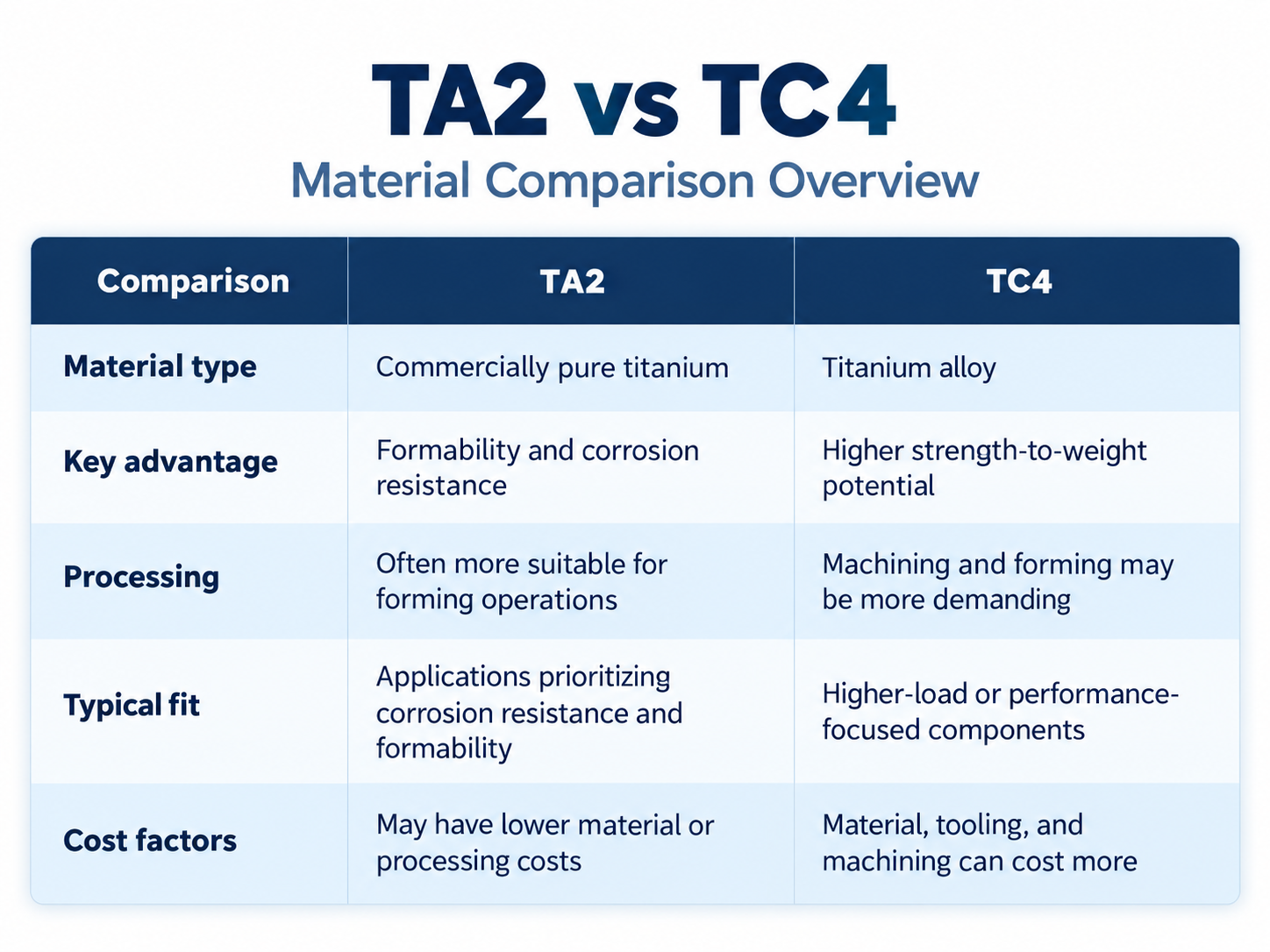

1. What Is the Difference Between TA2 and TC4?
TA2 is commercially pure titanium, commonly compared with Grade 2, and offers good formability and corrosion resistance. TC4, also known as Ti-6Al-4V / Grade 5 titanium, is an alloy containing approximately 6% aluminum and 4% vanadium, giving it higher strength.
Actual properties vary by standard, product form, processing condition, and heat treatment. Confirm the required specification before ordering.
2. Are Titanium Bolts Strong Enough? TA2 vs TC4 Strength
TA2 is relatively lower in strength. A commonly cited tensile-strength reference is around 440 MPa, depending on condition and specification. Certain TC4 product conditions may reach 900 MPa or more, but this is not a universal design value.
For high loads, vibration, or weight-sensitive applications, TC4 is often worth evaluating. For lower-load parts that prioritize formability and corrosion resistance, TA2 may be suitable. Always consider load, dimensions, thread design, environment, and safety margin.
3. Machining and Manufacturing: Which Is Easier to Process?
TA2’s plasticity makes it suitable for forming, bending, and stamping, although thread quality still depends on tooling and quality control. TC4’s higher strength and hardness can require more specialized tooling and carefully controlled machining, increasing production costs. For an accurate quote, provide your drawing, material grade, thread details, tolerances, surface finish, and order quantity.
4. Corrosion Resistance: Is TA2 or TC4 Better?
Both materials resist corrosion well in many environments. The better choice depends on the medium, temperature, concentration, surface condition, and exposure time. TA2 suits applications that benefit from commercially pure titanium; TC4 combines corrosion resistance with higher strength.
For marine, chemical, or other aggressive environments, verify suitability for the exact service conditions. For the right choice, compare the load requirements, weight target, operating environment, and total cost of the finished fastener.
5. Surface Finishing and Total Cost
TA2 and TC4 can be anodized, while TC4 may also use finishes such as PVD depending on the application. Color and coating performance depend on surface preparation and process control.
TA2 may have a lower material cost, while TC4 often costs more to machine. Compare the full manufacturing cost—including tolerances, finishing, testing, and order quantity—not just the raw material price.
6. How to Choose the Right Titanium Bolts for Your Project
Choose TA2 when formability, corrosion resistance, and lower-load performance are priorities. Consider TC4 when higher strength, low weight, and demanding mechanical performance matter most. Before ordering, confirm grade, dimensions, threads, tolerances, finish, and testing requirements.
When comparing titanium fasteners manufacturers, check material traceability, machining capability, dimensional inspection, and quality documentation. For special dimensions or thread designs, an experienced manufacturer can assess your custom titanium bolts project. Share your drawings, requirements, and estimated quantity to discuss a suitable solution.
