Titanium Tapered Head Socket Cap Screws-TB-SH-06

Material Ti6AI4V (Gr.5) Titanium
Head Style Hex Socket Tapered
Drive style Hex Socket
Thread size M2 M3 M4 M5 M6 M8 M10 M12 M14 M16 M18 M20…
Length 12mm~200mm
Standard DIN 912 Tapered
Color Natural Color/Black/Burnt Blue/Golden/Rainbow/Purple/Green/Customized color

Description

Titanium Tapered Head Socket Cap Screws Specs

Head Style Hex Socket Tapered Material Ti6AI4V (Gr.5) Titanium/Custom LOGO Customizable
Drive style Hex Socket Hardness Rockwell C36 Quality Control 100% Fully Check
Thread size M4~M36 Thread Type Metric MOQ Items in Stock (China):MOQ 1 PC
Items in Stock (USA):MOQ 1 PC
Items Out of Stock: MOQ 100 Pieces
Length 12mm~200mm Thread Spacing Coarse Thread Customizable Colors Natural Color/Black/Burnt Blue/Golden/Rainbow/Purple/Green/Customized color
Standard DIN 912 Tapered Threading Fully Threaded/Partially Threaded Surface Treatment Pickling/Polishing/Anodizing/PVD Coloring



Why Choose Our Titanium Tapered Head Socket Cap Screws?

1.Material

Crafted from premium aerospace-grade Ti6AL4V (TC4) titanium alloy, rated at 5, ensuring exceptional strength and reliability.

2.Customizable Color

Available in a range of colors to meet specific aesthetic requirements, offering personalized options.

3.Surface Treatment

Enhanced with options of pickling, polishing, anodizing, and PVD coloring, providing superior corrosion resistance and a refined finish.

4.Outstanding Performance

Boasting high performance, lightweight, high strength, and exceptional durability, titanium surpasses aluminum in hardness, outlasts aluminum alloys, is harder than steel, and outperforms organic materials like stainless steel.

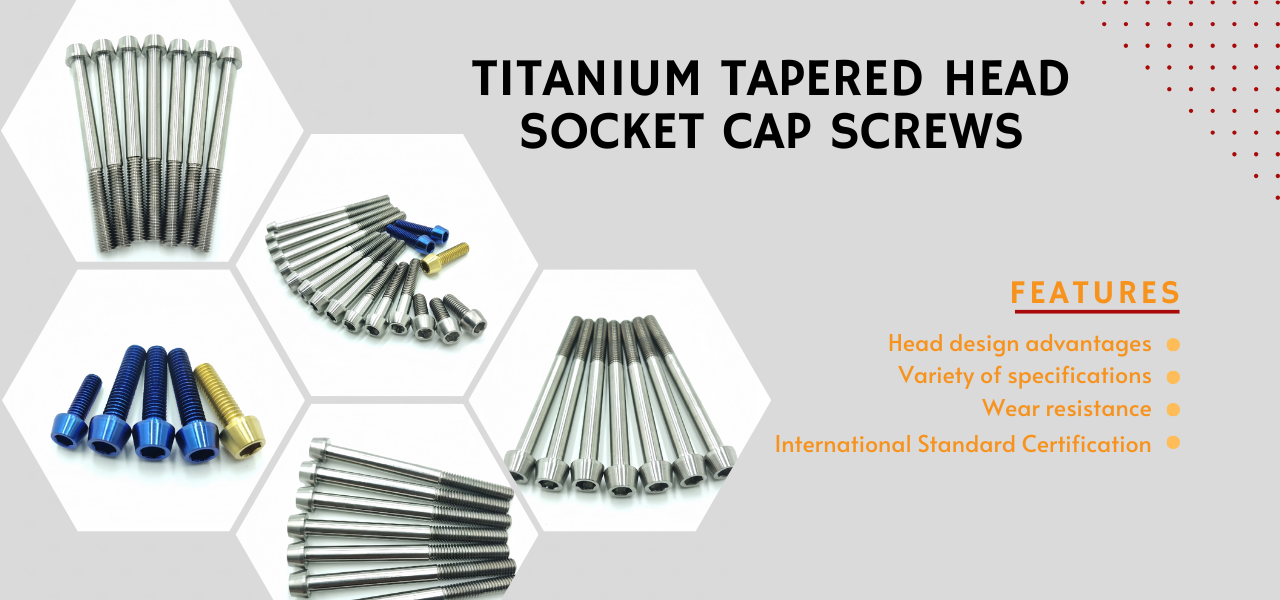

5.Feature of Titanium Tapered Head Socket Cap Screws:

– High Strength and Low Density: Offers an excellent strength-to-weight ratio.

– Excellent Corrosion Resistance: Suitable for use in harsh environments.

– Good Thermal Resistance: Maintains performance at high temperatures.

– Low Temperature Resistant: Retains toughness and mechanical properties even in cryogenic conditions.

– Nonmagnetic and Nontoxic: Ideal for applications with high safety requirements.

– Good Coefficient of Thermal Expansion: Maintains stable dimensions and shape.

– Low Elastic Modulus: Provides a certain degree of elasticity and impact resistance.

Specification



Thread Size d M1.4 M1.6 M2 M2.5 M3 M4 M5 M6 M8 M10 M12 (M14) M16 (M18) M20
P Pitch Coarse thread 0.3 0.35 0.4 0.45 0.5 0.7 0.8 1 1.25 1.5 1.75 2 2 2.5 2.5
Fine thread pitch-1 1 1.25 1.25 1.5 1.5 1.5 1.5
Fine thread pitch-2 1 1.5 2 2
dk plain head max 2.6 3 3.8 4.5 5.5 7 8.5 10 13 16 18 21 24 27 30
knurled heads max 2.74 3.14 3.98 4.68 5.68 7.22 8.72 10.22 13.27 16.27 18.27 21.33 24.33 27.33 30.33
min 2.46 2.86 3.62 4.32 5.32 6.78 8.28 9.78 12.73 15.73 17.73 20.67 23.67 26.67 29.67
da max 1.8 2 2.6 3.1 3.6 4.7 5.7 6.8 9.2 11.2 13.7 15.7 17.7 20.2 22.4
ds max 1.4 1.6 2 2.5 3 4 5 6 8 10 12 14 16 18 20
min 1.26 1.46 1.86 2.36 2.86 3.82 4.82 5.82 7.78 9.78 11.73 13.73 15.73 17.73 19.67
e min 1.5 1.73 1.73 2.3 2.87 3.44 4.58 5.72 6.86 9.15 11.43 13.72 16 16 19.44
k max 1.4 1.6 2 2.5 3 4 5 6 8 10 12 14 16 18 20
min 1.26 1.46 1.86 2.36 2.86 3.82 4.82 5.7 7.64 9.64 11.57 13.57 15.57 17.57 19.48
s Nominal Size 1.3 1.5 1.5 2 2.5 3 4 5 6 8 10 12 14 14 17
min 1.32 1.52 1.52 2.02 2.52 3.02 4.02 5.02 6.02 8.025 10.025 12.032 14.032 14.032 17.05
max 1.36 1.56 1.56 2.06 2.58 3.08 4.095 5.14 6.14 8.175 10.175 12.212 14.212 14.212 17.23
t min 0.6 0.7 1 1.1 1.3 2 2.5 3 4 5 6 7 8 9 10
w min 0.5 0.55 0.55 0.85 1.15 1.4 1.9 2.3 3 4 4.8 5.8 6.8 7.8 8.6
Weight of per 1000 steel products(≈kg)
Length of Thread b



Thread Size d (M22) M24 (M27) M30 (M33) M36 M42 M48 M56 M64 M72 M80 M90 M100
P Pitch Coarse thread 2.5 3 3 3.5 3.5 4 4.5 5 5.5 6 6 6 6 6
Fine thread pitch-1 1.5 2 2 2 2 3 3 3 4 4 4 4 4 4
Fine thread pitch-2 2
dk plain head max 33 36 40 45 50 54 63 72 84 96 108 120 135 150
knurled heads max 33.39 36.39 40.39 45.39 50.39 54.46 63.46 72.46 84.54 96.54 108.54 120.54 135.63 150.63
min 32.61 35.61 39.61 44.61 49.61 53.54 62.54 71.54 83.46 95.46 107.46 119.46 134.37 149.37
da max 24.4 26.4 30.4 33.4 36.4 39.4 45.5 52.6 63 71 79 87 97 107
ds max 22 24 27 30 33 36 42 48 56 64 72 80 90 100
min 21.67 23.67 26.67 29.67 32.61 35.61 41.61 47.61 55.54 63.54 71.54 79.54 89.46 99.46
e min 19.44 21.73 21.73 25.15 27.43 30.85 36.57 41.13 46.83 52.53 62.81 74.21 85.61 97.04
k max 22 24 27 30 33 36 42 48 56 64 72 80 90 100
min 21.48 23.48 26.48 29.48 32.38 35.38 41.38 47.38 55.26 63.26 71.26 79.26 89.13 99.13
s Nominal Size 17 19 19 22 24 27 32 36 41 46 55 65 75 85
min 17.05 19.065 19.065 22.065 24.065 27.065 32.08 36.08 41.08 46.08 55.1 65.1 75.1 85.12
max 17.23 19.275 19.275 22.275 24.275 27.275 32.33 36.33 41.33 46.33 55.4 65.4 75.4 85.47
t min 11 12 13.5 15.5 18 19 24 28 34 38 43 48 54 60
w min 9.4 10.4 11.9 13.1 13.5 15.3 16.3 17.5 19 22 25 27 32 34
Weight of per 1000 steel products(≈kg)
Length of Thread b
